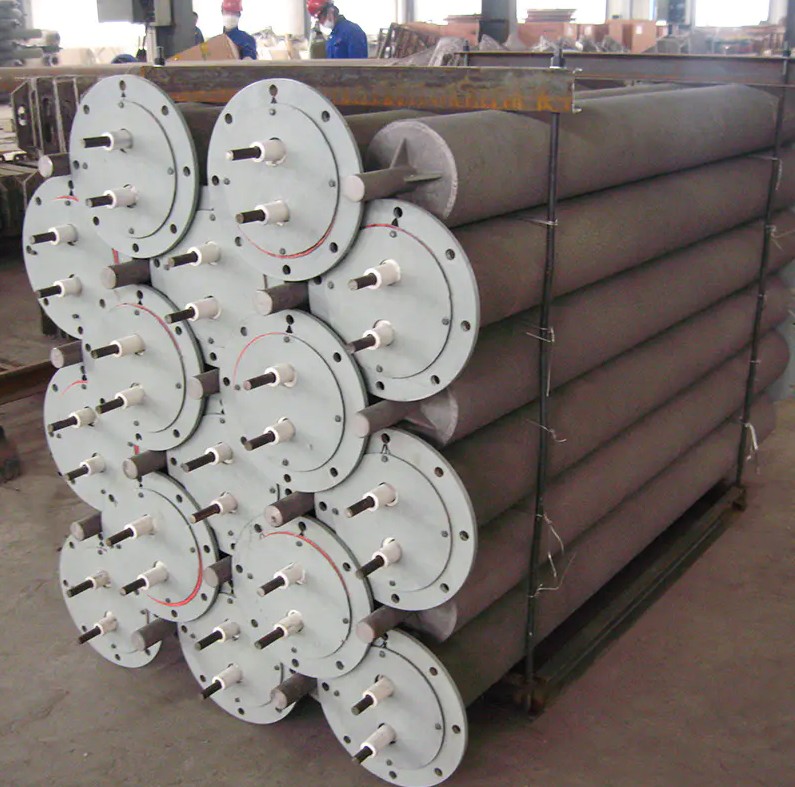

What is a Furnace Roller?

A furnace roller — also called a furnace roll — is a rotating cylindrical component installed inside industrial continuous furnaces to support, convey, and transport materials (such as steel strips, glass sheets, ceramic tiles, or other flat products) through the high-temperature processing zone. Furnace rollers form the moving conveyor surface inside the furnace, operating continuously under simultaneous exposure to extreme heat, heavy mechanical loads, thermal cycling, atmospheric corrosion, and wear from the materials passing over them. Because they must perform reliably at temperatures ranging from 700°C to over 1,300°C depending on the furnace type, furnace rollers are engineered from specialised high-temperature alloys and ceramics to withstand high-temperature fatigue, oxidation, hot corrosion, and abrasive wear over extended service lives.

Core Functions of Furnace Rollers

Furnace rollers serve three interconnected functions within a continuous furnace that together determine the quality of the heated or processed product:

• Material support: Rollers bear the weight of the material passing through the furnace — whether that is a heavy steel slab, a flat glass sheet, or a thin ceramic tile. Consistent, uniform support prevents the material from sagging, warping, or developing differential thermal gradients that cause deformation during heating.
• Continuous transport: Rollers rotate to move the material at a controlled speed through the furnace's heating, soaking, and cooling zones. Precise speed control determines the time the material spends at each temperature — a critical process parameter for achieving the target metallurgical, physical, or chemical properties in the final product.
• Surface quality protection: The contact between the roller surface and the processed material must be controlled to prevent marking, scratching, or pick-up of material onto the roller surface — defects that transfer repeatedly to subsequent pieces and result in product rejection or downgrading.

Operating Environment: The Demands That Define Roller Design

The operating environment inside an industrial furnace is one of the most demanding in manufacturing. Furnace rollers must simultaneously withstand multiple destructive mechanisms that are individually severe and collectively challenging to engineer against.

High-Temperature Fatigue

Furnace rollers rotate continuously under load at high temperatures. The combination of mechanical stress (from the weight of the product and their own weight) and thermal stress (from temperature gradients within the roller body) generates cyclic fatigue loading. Steel rollers operating at 900°C–1,100°C are exposed to creep — the time-dependent permanent deformation that occurs when metals sustain stress at elevated temperatures. A roller that creeps will develop a permanent bow (deflection from the horizontal), causing uneven support of the conveyed material and eventually contact with the furnace structure. High-temperature fatigue resistance — the ability to sustain cyclic loading at elevated temperature without fatigue crack initiation or creep deformation — is therefore a primary material selection criterion.

Oxidation and Hot Corrosion

The furnace atmosphere is typically a controlled mixture of air, combustion gases, nitrogen, hydrogen, or reactive atmospheres depending on the process — and all of these atmospheres attack metallic roller surfaces to varying degrees. At high temperatures, oxygen reacts with the roller surface to form oxide scales; sulphur-containing gases attack through hot corrosion mechanisms that are far more aggressive than simple oxidation; carbon monoxide can carburise steel roller surfaces; and hydrogen atmospheres can embrittle certain alloy compositions. Oxidation-resistant roller alloys form adherent, slow-growing protective oxide scales (typically Al₂O₃ or Cr₂O₃) that act as diffusion barriers, dramatically reducing the rate of continued oxidation.

Abrasive and Adhesive Wear

Materials conveyed through a furnace — hot steel strip, glass, ceramics, or fired clay products — contact the roller surface under load. Steel products may transfer adherent oxide scale (known as build-up or accretion) onto the roller surface; this build-up grows progressively and eventually causes surface defects on the conveyed product. Glass and ceramics abrade roller surfaces through direct contact. Both mechanisms degrade roller surface geometry and texture, reducing service life and compromising product quality. Wear-resistant surface treatments, coatings, or material selections that minimise adhesion and maximise surface hardness at temperature are key responses to this challenge.

Thermal Shock and Cycling

Furnace rollers are exposed to thermal shock when the furnace is started up from cold, during planned or unplanned shutdowns, and when cold material enters a hot furnace zone. Rapid temperature changes create large thermal gradients within the roller body, generating internal stresses that can cause cracking — particularly in ceramic rollers or ceramic-coated metallic rollers where the thermal expansion mismatch between coating and substrate must be carefully managed.

Materials Used in Furnace Roller Construction

The choice of roller material is the most critical engineering decision in furnace roller selection, and must balance temperature capability, corrosion and oxidation resistance, mechanical strength, thermal stability, and cost over the expected service life.

Heat-Resistant Cast Alloys

Cast iron- and nickel-based heat-resistant alloys — including high-chromium cast iron, HK-40, HP-modified alloys, and similar austenitic iron-nickel-chromium compositions — are widely used for furnace rollers operating in the 900°C–1,100°C range. These alloys derive their high-temperature strength from a combination of solid solution strengthening (chromium, nickel, and other elements in the austenitic matrix) and carbide precipitation that stabilises grain boundaries against creep. Chromium contents of 20–35 wt% provide the alumina or chromia scale formation needed for oxidation resistance.

Nickel-Base Superalloys

For the most demanding furnace applications approaching or exceeding 1,100°C — including high-temperature annealing furnaces, sintering furnaces, and direct reduction iron (DRI) furnaces — nickel-base superalloy rollers provide superior creep resistance and oxidation resistance compared to iron-based alloys. The combination of γ' precipitate strengthening and alloying with chromium, aluminium, and reactive elements enables these materials to maintain structural integrity at temperatures where iron-based alloys would creep catastrophically.

Silicon Carbide (SiC) Ceramic Rollers

Silicon carbide ceramic rollers are used in the glass manufacturing industry (float glass and flat glass tempering lines) and in ceramic tile kilns at temperatures up to 1,350°C . SiC offers exceptional thermal shock resistance (critical in glass processing where cold glass enters a hot furnace), very high hot hardness that resists abrasive wear from ceramic or glass products, good oxidation resistance, and a low coefficient of thermal expansion that minimises thermal distortion at operating temperature. SiC rollers are brittle — they cannot sustain significant point loads or impact — but their surface hardness and temperature capability exceed those of metallic rollers for specific high-temperature applications.

Composite and Coated Rollers

Composite furnace rollers use a metallic core (typically a heat-resistant alloy) with a ceramic coating or composite sleeve applied to the roll body surface. The metallic core provides mechanical strength, ductility, and resistance to heavy loads; the ceramic surface layer provides hardness, wear resistance, and oxidation protection. Thermal spray coatings (including HVOF-applied tungsten carbide and plasma-sprayed oxide ceramics) and diffusion aluminide coatings are commonly applied to metallic roller substrates to extend service life in specific wear or corrosion environments.

Types of Furnaces That Use Rollers

Furnace rollers are used across a wide range of industrial continuous furnace types, with roller material and geometry specification varying by the temperature, atmosphere, load, and product requirements of each application.

Key Design Parameters of Furnace Rollers

Selecting the correct furnace roller for a specific application requires defining several key dimensional and performance parameters that directly affect support capability, deflection under load, and service life.

• Roller body diameter and length: Larger diameter rollers have greater bending stiffness for a given material — important for minimising deflection under the weight of heavy slabs. Roller lengths are determined by the furnace width, which can range from less than 1 metre for small ceramic tile kilns to over 10 metres for wide-strip steel rolling mill reheating furnaces.
• Deflection under load: The maximum allowable deflection (sag) of the roller body under its own weight plus the product load is a critical design constraint. Excessive deflection causes the conveyed material to bow or warp, producing off-specification product geometry. Maximum allowable deflection is typically specified as a fraction of roller span — often L/1000 or less at operating temperature, where L is the unsupported span.
• Surface finish and profile: Rollers conveying surface-sensitive materials such as automotive-quality steel or flat glass require tightly controlled surface roughness (Ra) values to prevent surface marks on the product. Rollers in ceramic tile kilns may be profiled (crowned or grooved) to control tile positioning and prevent edge contact.
• Stub end and journal design: The ends of the furnace roller protrude through the furnace side walls and are supported by bearings located in the cooler ambient-temperature zone outside the furnace. The stub end design must accommodate the large temperature differential between the hot roller body (at furnace temperature) and the ambient-temperature bearings — a differential that drives significant differential thermal expansion and must be managed by the journal and bearing design.
• Drive configuration: Furnace rollers are driven from outside the furnace through the stub ends, using chain drives, gear drives, or individual servo motors. Uniform rotation speed across all rollers in a zone is essential for preventing differential speed that would cause the conveyed material to skew or cause surface marking.

Failure Modes and Their Causes

Understanding furnace roller failure modes helps engineers specify rollers correctly and plan maintenance intervals that prevent unplanned furnace outages — which are extremely costly in continuous production operations.

Creep Deformation (Bowing)

The most common failure mode for metallic furnace rollers, particularly in high-temperature zones. The roller gradually develops a permanent bow due to creep under the combined weight of the roller body and conveyed material. A bowed roller creates an uneven conveying surface, causes product waviness or warping, and eventually contacts adjacent furnace structure. Creep-bowed rollers must be replaced before the bow exceeds the maximum allowable deflection limit.

Surface Build-Up (Accretion)

In steel processing furnaces, iron oxide scale from the strip or slab surface adheres to the hot roller surface and accumulates over time, forming hard nodular deposits (accretions) that are bonded to the roller surface. These deposits create surface irregularities that mark the product and eventually cause product rejection. Accretion is managed by periodic roller cleaning (mechanical or chemical) and by selecting roller materials or coatings that minimise oxide adhesion.

Thermal Cracking

Rapid temperature changes — during furnace startup, shutdown, or when cold material enters a hot zone — generate thermal stresses in the roller body that can initiate surface cracks. In ceramic rollers, thermal cracking may propagate rapidly if the roller is notch-sensitive. In metallic rollers, surface oxidation and hot corrosion interact with thermal fatigue to produce a network of surface cracks (thermal fatigue crazing) that progressively deepen and eventually require roller replacement.

Oxidation and Hot Corrosion Degradation

Sustained operation in corrosive furnace atmospheres progressively reduces the wall thickness of metallic rollers through oxidation and hot corrosion. The oxide scale formed on the roller surface spalls periodically under thermal cycling stresses, exposing fresh metal to renewed attack. Over many operating hours, this mechanism reduces the effective cross-sectional area of the roller body, reducing its creep resistance and structural load-bearing capacity.

Maintenance and Service Life Management

Furnace roller replacement is one of the most significant planned maintenance activities in continuous furnace operations, requiring furnace shutdown, significant labour, and high-value replacement parts. Effective service life management minimises both unplanned failure costs and premature scheduled replacement.

1. Deflection monitoring: Regular measurement of roller deflection during scheduled maintenance shutdowns — typically using laser alignment tools — identifies rollers approaching their maximum allowable bow before they cause product quality problems. Rollers showing deflection above 50% of the maximum allowable value are typically scheduled for near-term replacement rather than left until failure.
2. Surface condition inspection: Visual and dimensional inspection of roller surface condition during shutdown identifies build-up accumulation, cracking, and surface corrosion. Minor build-up can sometimes be ground or machined off to restore roller surface quality; severe build-up or surface cracking typically requires replacement.
3. Wall thickness measurement: For metallic rollers, ultrasonic thickness measurement during shutdown quantifies the material consumed by oxidation and corrosion. This data feeds a remaining-life calculation that allows planned replacement before structural failure rather than reactive replacement after failure.
4. Rotation consistency checks: Monitoring the drive torque of each roller during production identifies rollers with increased bearing friction, drive chain wear, or mechanical binding that precedes catastrophic failure. Abnormal torque readings trigger investigation and preventive replacement.
5. Historical service life records: Maintaining roller-specific service records linking installation date, operating zone temperature, total operational hours, failure mode, and replacement date builds the data set needed to optimise replacement interval scheduling and specification decisions for future roller procurement.
